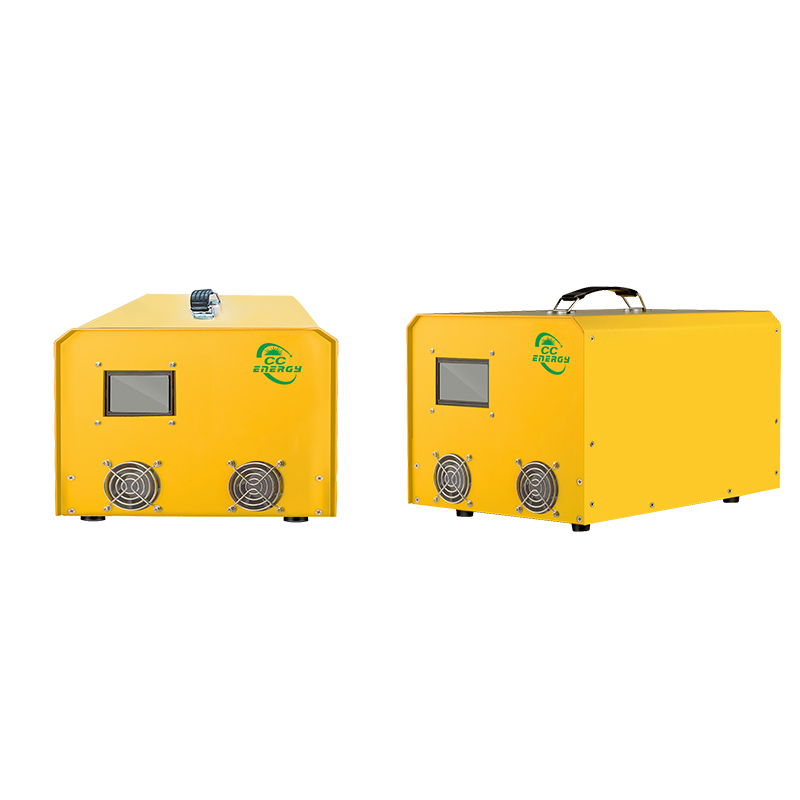

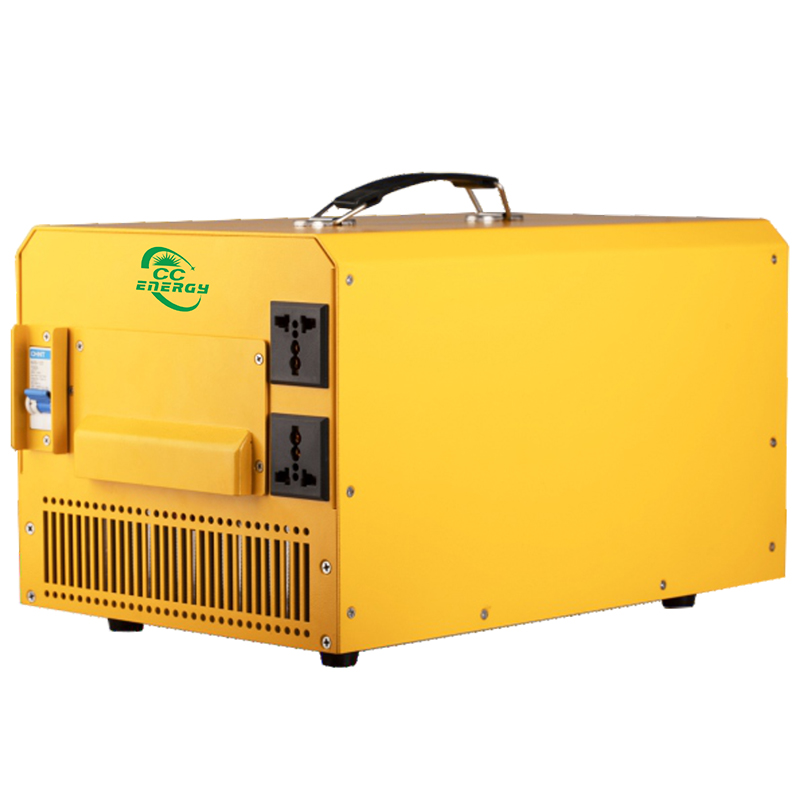

Pure Sine Wave Solar Inverter
Portable, Fully automatic
Support 90% discharge of electric Vehicles
Overload and short Circuit Protection
Support Outdoor use in Different locations
Support variouse power applicances
| MODEL | CCTL-2/5KW | CCTL-2/10KW | CCTL-2/15KW |
| Input voltage range | 300V DC-750V DC | ||
| Output frequency | 50/60 Hz | ||
| Output voltage- | 220VAC 50Hz | ||
| Precision | 士0.1% | ||
| Rated output current | 23A | 45A | 68A |
| Output power | 5KW | 10KW | 15KW |
| Efficiency | 98% | ||
| Radio interference | B级 | ||
| Line Harmonic Suppression with | Yes | ||
| Degree of protection | IP20 | ||
| Certificates | CE | ||
| Insulation voltage (input / output) | 3.36KV .a.c | ||
| Insulation voltage (input / PE) | 2.006KVa.c | ||
| MTBF | 》400000 h(25 °C) | ||
| Design service life 15 year | 6years | ||
| Dimension’weight | 280*140*210 | 395*250*215/14.1kg | 450*280*220 |
| Environmental reguirements | |||
| Operating temperature | -35 to +65 °C | ||
| Storage temperature | -40to+65°C | ||
| Operating humidity | (0 to 95%,non-condensing) | ||
| Altitude | (≤4000m normal use) | ||
| Waterproof grade | IP20 | ||
