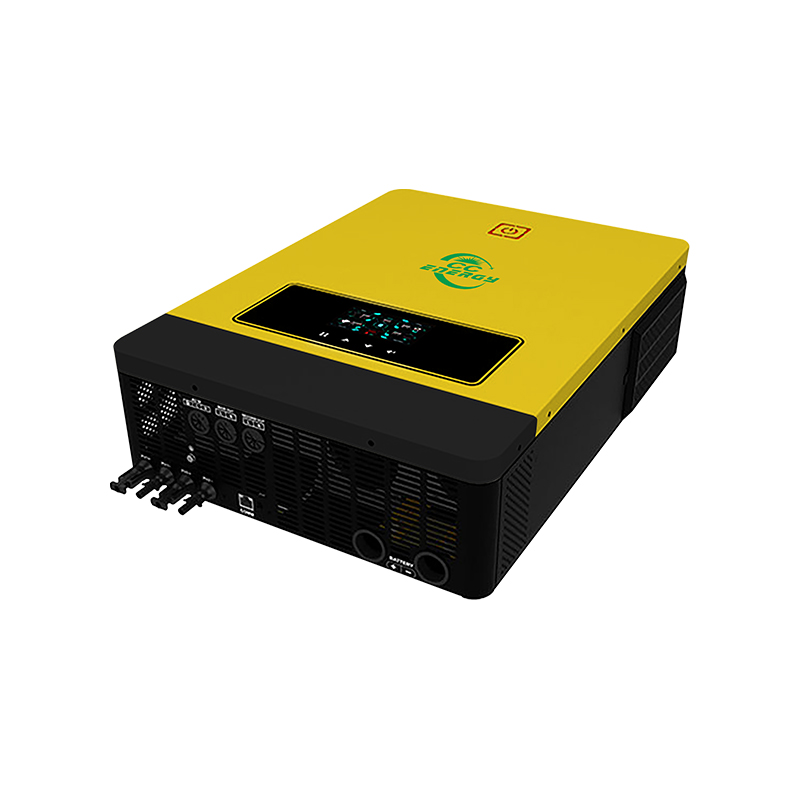

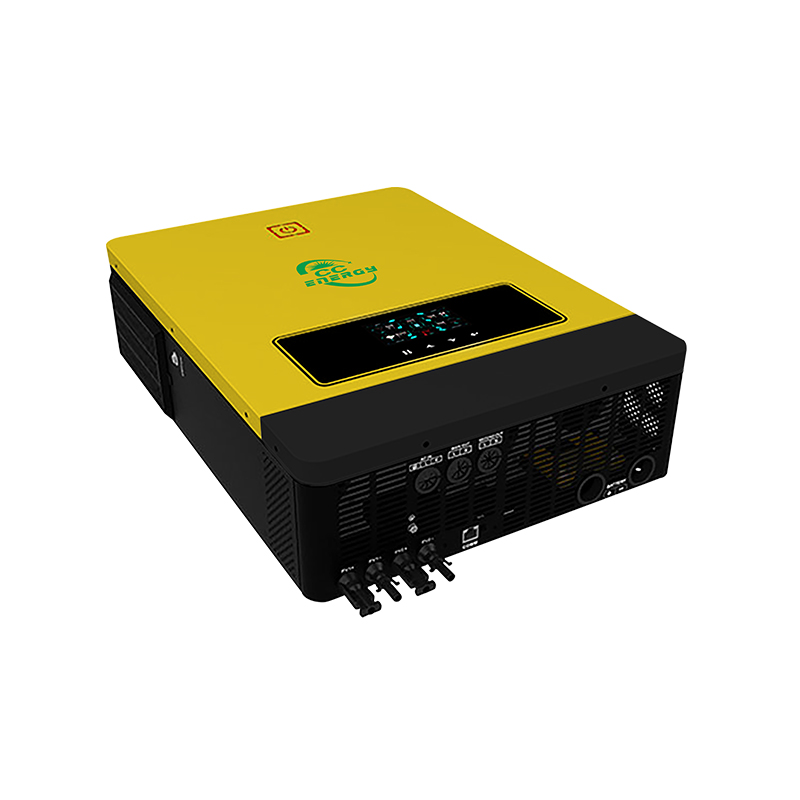

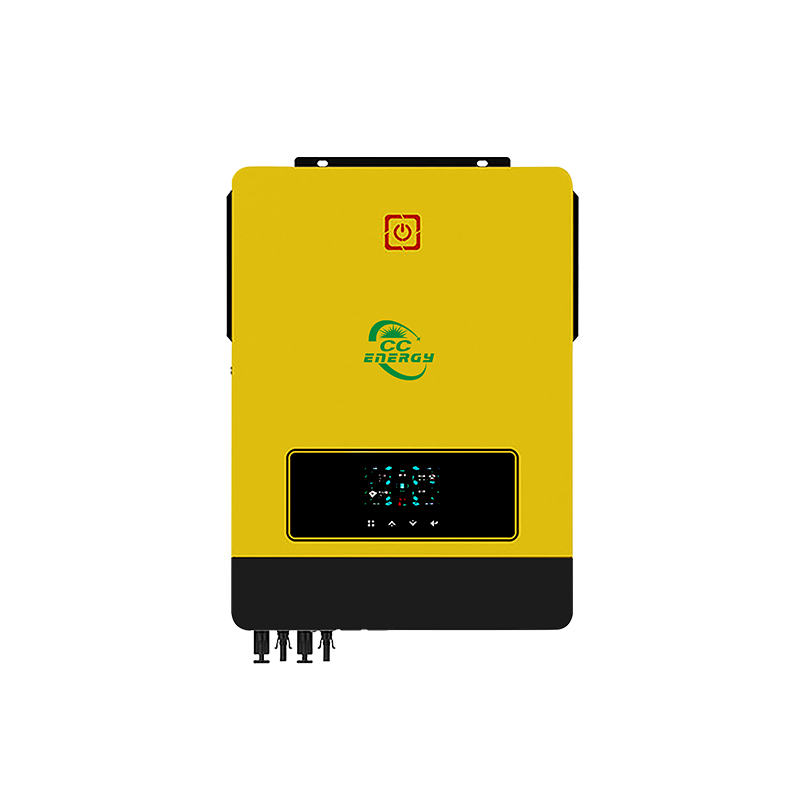

Pure sine wave solar inverter(on/off Grid)
Output power factor 1.0
WIFI&GPRS available for IOS and Android
Inverter can run without battery
One-key restoration to factory Settings
Built-in Lithium battery automatic activation
Built-in 160A MPPT solar charger (for 8.2kw,10.2kw)140A(for 7.2kw)
High PV input voltage range(90- 500VDC)
Built-in anti-dust kit for harsh environment
Smart battery charge design to optimize battery life
Dual output
Dual PV input
Touch button
On Off Grid Work Mode
| MODEL | CCH 8.2KW | CCH 10.2KW |
| Phase | 1-phase | |
| Maximum PV Input Power | 5400W+5400W | |
| Rated Output Power | 8200W/8200VA | 10200W/10200VA |
| Maximum Solar Charging Current | 160A | 160A |
| GRID-TIE OPERATION | ||
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum Current | 360/500VDC | |
| Stat-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |
| MPPT Voltage Range | 90-450VDC | |
| Maximum Input Current | 2/18A | 2/18A |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 190-253VDC | |
| Nominal Output Current | 35.6A | 44.3A |
| Power Factor | >0.99 | |
| EFFICIENCY | ||
| Maximum Conversion Efficiency(DC/AC) | 0.98 | |
| TWO LOAD OUTPUT POWER | ||
| Full Load | 8200W | 10200W |
| Maxium MainLoad | 8200W | 10200W |
| Maxium Second Load(battery mode) | 2733W | 3400W |
| Maxium Load Cut Off Voltage | 52VDC | 52VDC |
| Maxium Load Return Voltage | 54VDC | 54VDC |
| OFF-GRID OPERATION | ||
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |
| Acceptable Input Voltage Range | 90-280VAC/170-280VAC | |
| Frequency Range | 49-51HZ | |
| Maxium AC Input Current | 40A | 50A |
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| MPPT Voltage Range | 90-450VDC | |
| Maximum Input Current | 2/18A | 2/18A |
| BATTERY MODE OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Waveform | Pure sine Wave solar inverter | |
| Efficiency(DC to AC) | 0.94 | |
| BATTERY & CHARGER | ||
| Nominal DC Voltage | 48V | |
| Maximum Solar Charging Current | 160A | |
| Maximum AC Charging Current | 140A | |
| Maximum Charging Current | 160A | |
| HYBRID OPERATION | ||
| PV INPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Stat-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |
| MPPT Voltage Range | 90-450VDC | |
| Maximum Input Current | 2/18A | 2/18A |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 190-253VDC | |
| Nominal Output Current | 35.6A | 44.3A |
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |
| Acceptable Input Voltage Range | 90-280VAC/170-280VAC | |
| Maximum Input Current | 40A | 50A |
| Maximum AC Charging Current | 140A | 140A |
| GENERAL | ||
| PHYSICAL | ||
| Dimension,D*W*H(mm) | 500*420*160 | 500*420*160 |
| Carton Dimension,D*W*H(mm) | 618*463*205 | 618*463*205 |
| Net Weight(kg) | 15.8 | 16.2 |
| Gross Weight(kg) | 16.4 | 16.8 |
| INTERACE | ||
| Communication Port | RS232/RS485/WIFI/GPRS/REMOVE LCD | |
| ENVIRONMENT | ||
| Humidity | 5% to 95% | |
| Operationg Temperature | -10℃-50℃ | |
| STANDARD | ||
| Compliance Safety | CE | |
