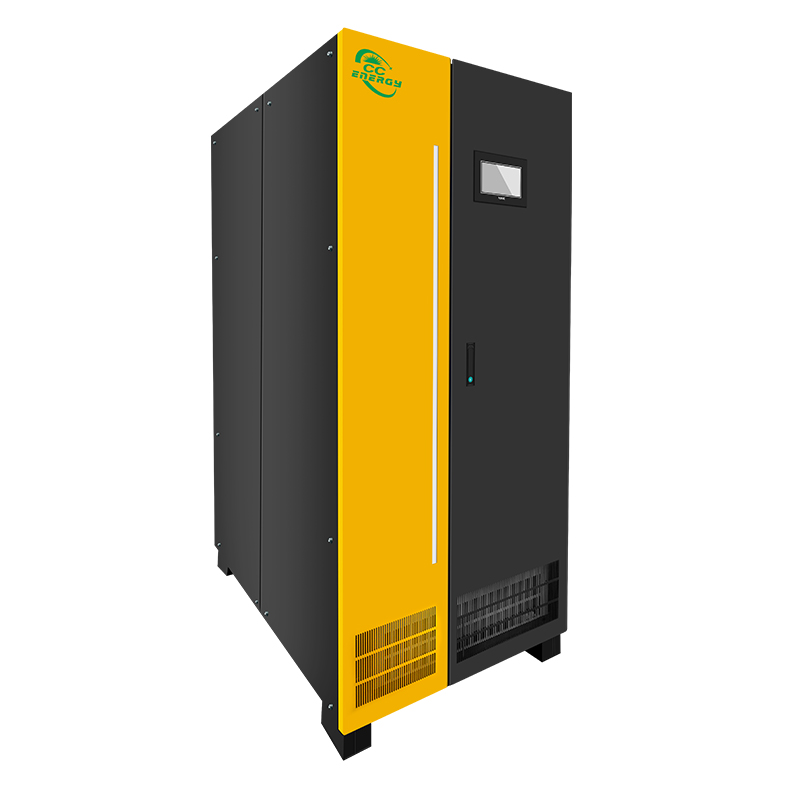

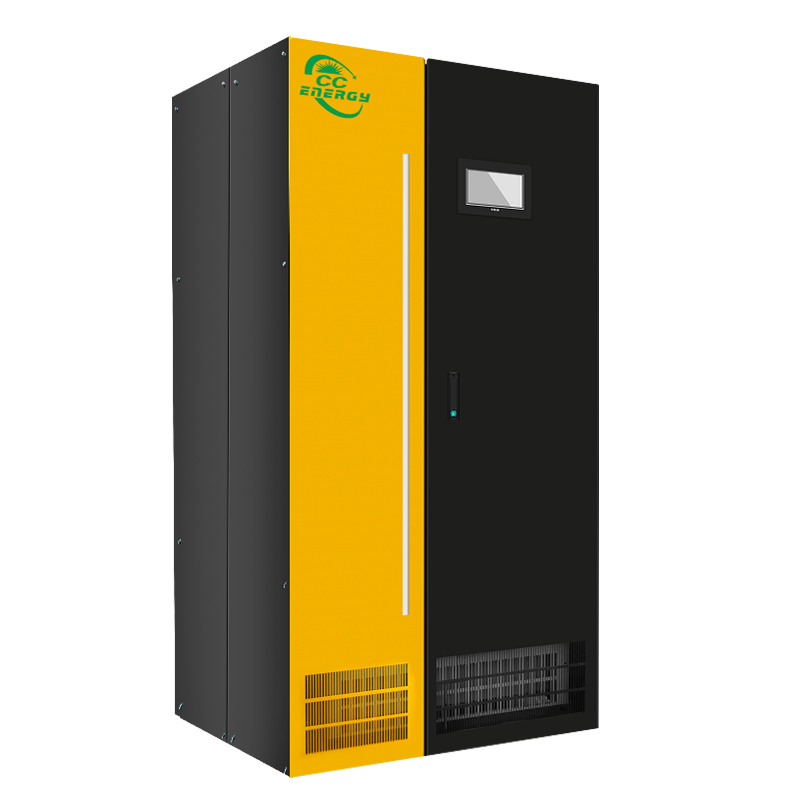

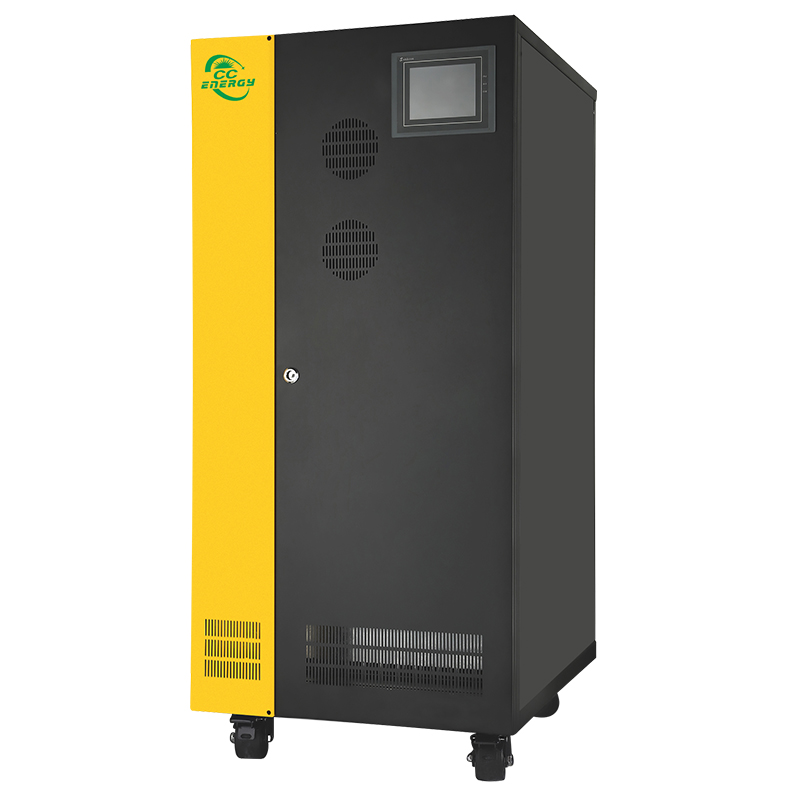

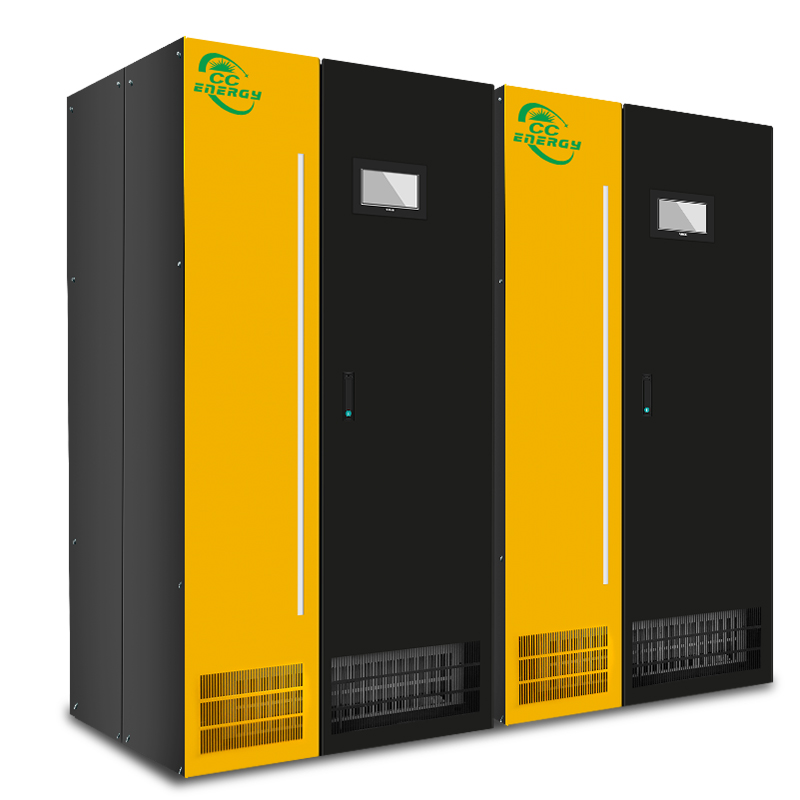

Pure Sine Wave Solar Inverter
High Power, Fully automatic
Built in MPPT Charger
Various Protection Designs
Support Valve Requlated Lead – adic Battery Pack
Photovoltauc Power Generation System/ Solar Energy Storage System
| MODEL | CCTL-3+N 50KW | CCTL-3+N 100KW | CCTL-3+N 200KW | CCTL-3+N 300KW | CCTL-3+N 400KW | CCTL-3+N 500KW |
| Input (v) | 384V DC | 574V DC | 574V DC | 574V DC | 574V DC | 574V DC |
| Input (A) | 144A | 174A | 349A | 522A | 697A | 871A |
| Input range (v) | 336V.DC-520V.DC | 336V.DC-520V.DC | 336V.DC-520V.DC | 336V.DC-520V.DC | 336V.DC-520V.DC | 336V.DC-520V.DC |
| Output frequency | 50/60 Hz | |||||
| The output voltage | AC 390V 50Hz | |||||
| precision | 2.00% | |||||
| Rated output current | 144A | 200A | 400A | 600A | 800A | 100A |
| Rated output power | 50KW | 100KW | 200KW | 300KW | 400KW | 500KW |
| Inverter conversion efficiency | 98% | |||||
| radio interference | B | |||||
| Line Harmonic Suppression | yes | |||||
| degree of protection | IP20 | |||||
| structure | CATL will provide digital models, which must meet the following requirements: 1. Consistent outer envelope size 2. Consistent wiring harness interface 3. Consistent fixing methods |
|||||
| Insulation voltage (input/output) | 3.36KV .a.c | |||||
| Insulation voltage (input/PE) | 2.006KV.a.c | |||||
| MTBF | > 400000 h (25c) | |||||
| warranty period | 2 years | |||||
| Protect | ||||||
| reverse polarity protection | yes | |||||
| DC switch | yes | |||||
| AC switch | yes | |||||
| Overheating protection | yes | |||||
| Grid/fault monitoring | yes | |||||
| Insulation monitoring | yes | |||||
| surge protection | DC Type II;AC Type II | |||||
